IP66
5 YR WARRANTY

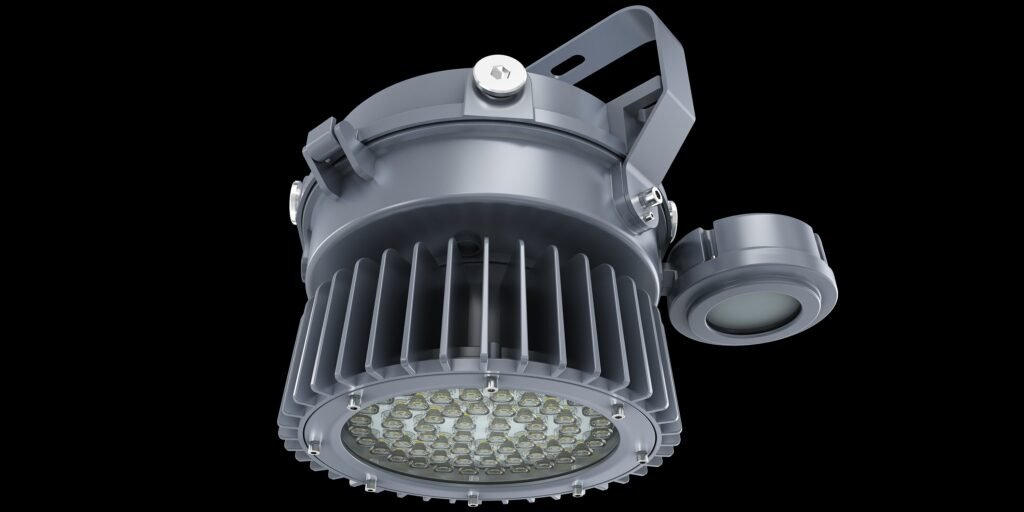

ATEX explosion proof LED lights 20 Watt, 2600lm, , IP66, ,2700K-6500K
SKU JNHB-ATEX-GSeries1 (20W)
Available mounting methods: bracket ceiling mounting, ceiling mounting, wall mounting, pole mounting. Available with microwave motion sensor (optional)
OUTPUT
2,600 lm
POWER
20 W
INGRESS
IP66
BEAM
30°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNHB-ATEX-GSeries1 (20W) |
|---|---|
| Power Consumption | 20 W |
| Input Voltage | AC100-277V, AC220-480V |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2700K-6500K |
| LED type | Philips Lumileds |
| Total Lumen output | 2600 |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK08 (Glass cover) |
| Housing colour | Grey |
| Housing material | Copper free aluminium, tempered glass |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP66 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 30°, 60°, 90°, 120° |
| Dimming Capability | Non-dimmable |
| ATEX standard | II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db |
| IECEx standard | Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db |
| UL standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap standard | Esquema 5 RETILAP |
| Fixture shape | Round |
| Fixture height (mm) | 193 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 338 mm |
| Net weight (kg) | 10.5 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK10 (with Wire Guard) |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 193.2×270×338mm |
|---|---|
| Net weight (kg) | 10.5 kg |
| Export carton dimensions (mm) | 530x520x380 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 12.5 kg |
| Fixture height (mm) | 193 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 338 |
Performance
2,600 lm
TOTAL OUTPUT
20 W
POWER DRAW
140
EFFICACY
