CCS approval
56
3 YR WARRANTY
Marine LED Navigation Signal lights for all vessels ≥50M in length 8 Watt, N/Alm, , 56, CCS approval
SKU JN-NAV-008S-AR-S

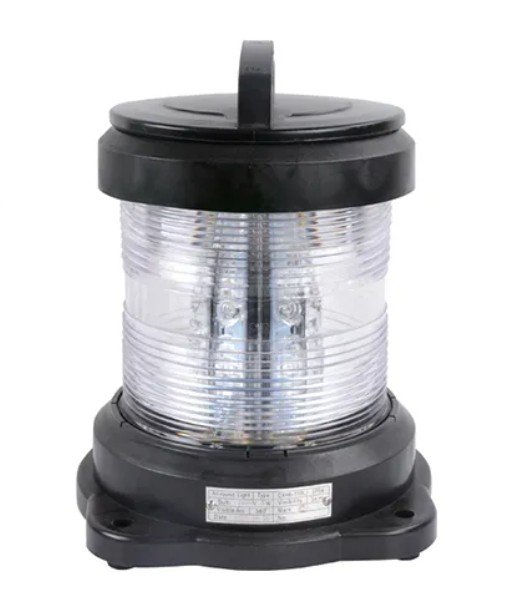

Single Lens LED Starboard Light for all vessels ≥50M in length
POWER
8 W
INGRESS
56
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NAV-008S-AR-S |
|---|---|
| Power Consumption | 8 W |
| Input Voltage | 100~240VAC |
| IP Rating (Ingress Protection) | 56 |
| LED type | SMD |
| Certifications | CCS approval |
| Housing colour | Black |
| Housing material | PA+GF housing, PC lampshade, Stainless steel lens hood |
| Socket/Base Type | 4 hole mounting (Φ10~Φ12 cable entry) |
| Warranty period (Years) | 3 |
| IMPA Code | 371121 |
| Visibility Range (NM) | 3 NM |
| Level Arc | 112.5° |
| Signal Color | Green |
| Output Voltage | 12-24VDC |
| LED Driver | Constant Current |
| Particulars | CCS approved for vessels ≥50M, IP56 rated |
| Working temperature range | -25°C to +55°C |
| Product dimensions (mm) | 215x215x215 |
|---|---|
| Net weight (kg) | 1.5 kg |
| Export carton dimensions (mm) | 300x250x250 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 3 kg |
| Fixture height (mm) | 215 |
| Fixture width (mm) | 215 |
| Fixture length (mm) | 285 |
Performance
8 W
POWER DRAW
56
INGRESS
