IP67

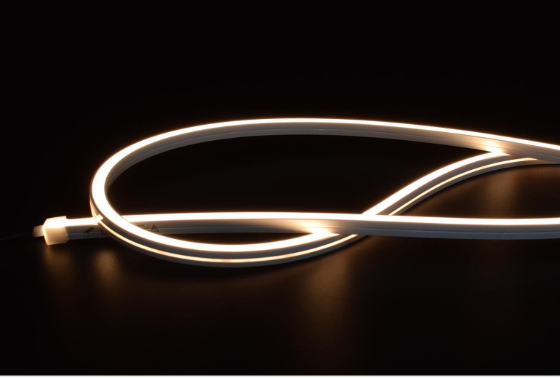

Neon Flex 10*10 Horizontal Bend 10 x 10mm 5W/m 24V 3500K
SKU JN-NF-5W-3500-10*10S-Hor
Neon Flex 10*10 Horizontal Bend: 10 x 10mm, Horizontal, Mono White, 5W/m, DC24V, 3500K, IP67.
OUTPUT
306 lm/m
POWER
5W/m
INGRESS
IP67
BEAM
3500K
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NF-5W-3500-10*10S-Hor |
|---|---|
| Power Consumption | 5W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 3500K |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP67 |
| Bending Type | Horizontal (min Ø100mm) |
| Dimension (W×H) | 10 x 10mm |
| Photometric Type | Mono White |
| Colour Range | 3400-3700K |
| Cut Point (mm) | 35.7mm |
| Lumen Output (lm/m) | 306 lm/m |
| Input Current Per Meter | 0.21A/m |
| Max Run Length (m) | 5 |
| Circuit Type | CV |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10 x 10mm |
|---|
Performance
306 lm/m
TOTAL OUTPUT
5W/m
POWER DRAW
3500K
BEAM
