IP67

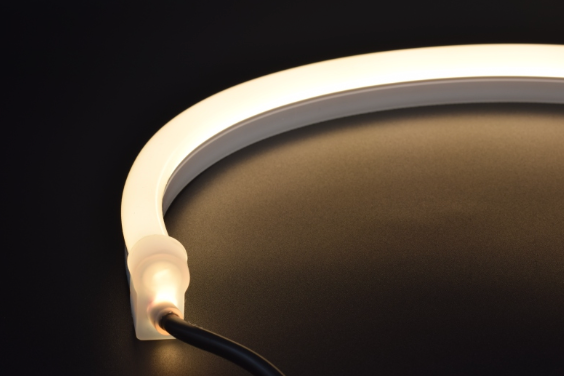

Neon Flex 10*23 Horizontal Bend 10 x 23mm 15W/m 24V Tunable White
SKU JN-NF-15W-TW-10*23R-Hor
Neon Flex 10*23 Horizontal Bend: 10 x 23mm, Horizontal, Tunable White, 15W/m, DC24V, Tunable White, IP67.
OUTPUT
480 lm/m
POWER
15W/m
INGRESS
IP67
BEAM
Tunable White
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NF-15W-TW-10*23R-Hor |
|---|---|
| Power Consumption | 15W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | Tunable White |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP67 |
| Bending Type | Horizontal (min Ø150mm) |
| Dimension (W×H) | 10 x 23mm |
| Photometric Type | Tunable White |
| Colour Range | 2000-6300K |
| Cut Point (mm) | 62.5mm |
| Lumen Output (lm/m) | 480 lm/m |
| Input Current Per Meter | 0.63A/m |
| Max Run Length (m) | 5 |
| Circuit Type | CV |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10 x 23mm |
|---|
Performance
480 lm/m
TOTAL OUTPUT
15W/m
POWER DRAW
Tunable White
BEAM
