IP20

RGBW+CCT Series | 5050 + 3014 SMD (RGB-Band) 120LED/m 24V 4.1W/m Red

SKU JNB96212-RGBW-CCT-3014

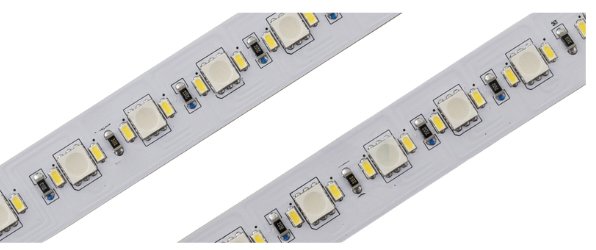

RGBW+CCT Series | 5050 + 3014 SMD (RGB-Band): 120 5050 + 3014 SMD LEDs/m, 4.1W/m, 24V, Red. Available in IP20. 5050 RGB + 3014 white on single line; Mi-Light FUT039

OUTPUT

109.3 lm/m

POWER

4.1W/m

INGRESS

IP20

BEAM

120°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Get in touch

Technical specification

Product SKU	JNB96212-RGBW-CCT-3014
Power Consumption	4.1W/m
Input Voltage	24V DC
Kelvin (K)	Red
Color Rendering Index (CRI)	80+
IP Rating (Ingress Protection)	IP20
LED type	5050 + 3014 SMD
Form Factor	15mm
LED Quantity Per Meter	120
Luminous Efficacy (lm/W)	68.2 lm/W
Beam angle (°)	120°
Cut Point (mm)	100mm
PCB Width (mm)	15mm
Lumen Output (lm/m)	109.3 lm/m
Input Current Per Meter	0.17A/m
Max Run Length (m)	5
PCB Copper Weight (oz)	2
Working temperature range	-20°C ~ 50°C
Lifespan (hours)	50,000 hours
