IP65 5 YR WARRANTY

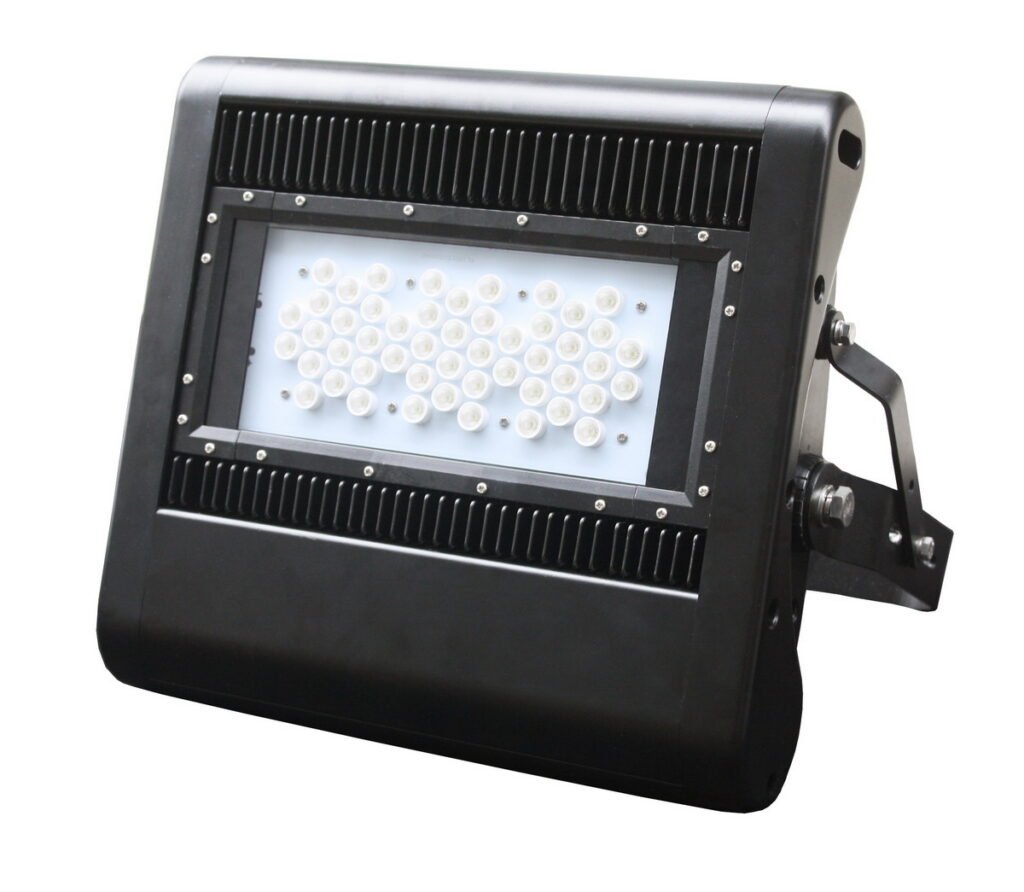

100 Watt natural white dimmable 60×60° single lens/ PCB LED flood light (IP65)

SKU JNFL12-100S-4500-A4-DIM

100 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 250 Watt metal halide/HID/HPS.

OUTPUT

15,200 lm

POWER

100 W

INGRESS

IP65

BEAM

60°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Technical specification

Product SKU	JNFL12-100S-4500-A4-DIM
Power Consumption	100 W
Input Voltage	100-305
Beam angle (°)	60°
IP Rating (Ingress Protection)	IP65
Color Rendering Index (CRI)	>70
LED type	Philips Lumileds
Total Lumen output	15200
Kelvin (K)	4500
IK impact rating	IK07
Dimming Capability	Dimmable
Housing colour	Black
Power Factor (PF)	>0.95
Warranty period (Years)	5
System Power	110 W
Number of LED Modules	1 modules
Beam Angle Square	60x60°
Environmental Temperature Range	-20°C ~ 45°C
Mounting Type	Adjustable Bracket
Fixture height (mm)	366 mm
Fixture length (mm)	387 mm
Fixture width (mm)	91 mm
Product Weight	5 kg
LED driver brand	Meanwell HLG-100H
Working temperature range	-20°C ~ 45°C
Working humidity range	10%-90% RH
Lifespan (hours)	50,000 hours

Net weight (kg)	5 kg
Export carton dimensions (mm, 2pcs)	460x450x380
Products per carton	2
Export carton gross weight (kg)	8 kg
Fixture height (mm)	366
Fixture width (mm)	91
Fixture length (mm)	387

15,200 lm

TOTAL OUTPUT

100 W

POWER DRAW

60°

BEAM
