ENEC/ CB/ SAA/ CE/ RohS
IP66
5 YR WARRANTY

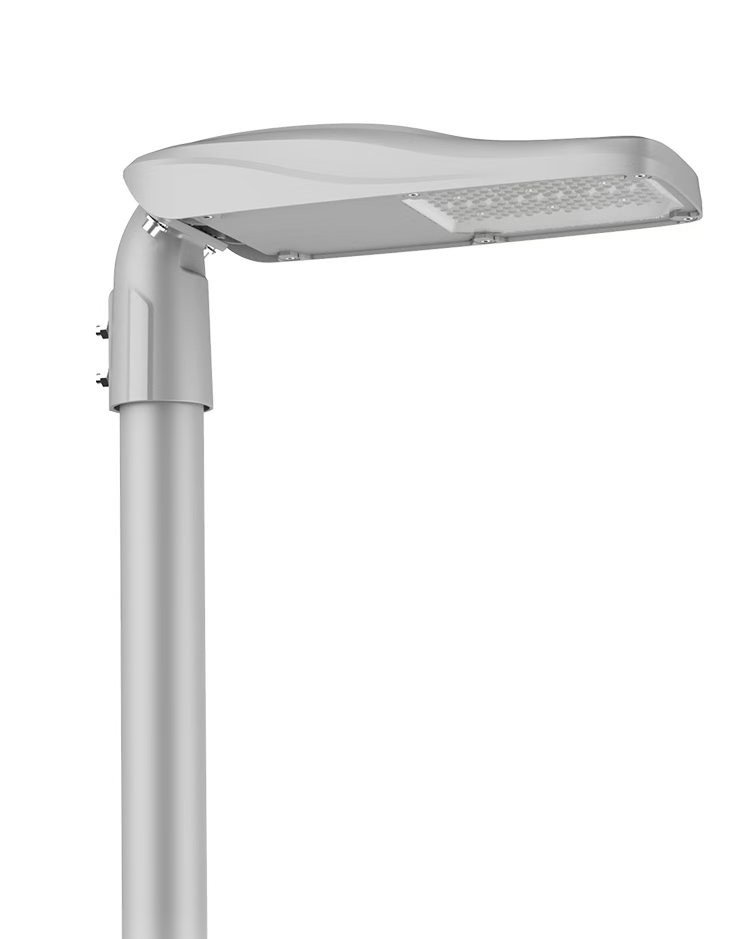

120W LED streetlight with adjustable bracket for mounting
SKU JNSTR14-120S
120W LED streetlight with adjustable bracket for mounting (suitable for ⌀60mm pole)
OUTPUT
21,000 lm
POWER
120 W
INGRESS
IP66
BEAM
T1M/ T25/ T2m-D
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNSTR14-120S |
|---|---|
| Input Voltage | 100-277VAC |
| Kelvin (K) | 5000 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | T1M/ T25/ T2m-D |
| IP Rating (Ingress Protection) | IP66 |
| IK impact rating | 10kV |
| LED type | Philips LUMILEDs 3030 or 5050 |
| Total Lumen output | 21000 |
| Housing colour | Grey |
| Housing material | Aluminium housing with anti-corrosive powder coat finish and reinforced glass |
| Dimming Capability | 1-10V, D4i, DALI2, LoRaWAN |
| Luminous Efficacy (lm/W) | 170 lm/W |
| Power Factor (PF) | ≥0.95 |
| Power Consumption | 120 W |
| Warranty period (Years) | 5 |
| Certifications | ENEC/ CB/ SAA/ CE/ RohS |
| Socket/Base Type | Standard mounting bracket is for ⌀60mm pole. Optional: mounting bracket for ⌀40mm pole and mounting bracket for ⌀50mm pole |
| Surge protection | 10kV |
| LED driver brand | Choice of Inventronics, Philips or Meanwell |
| Input Cable | Standard streetlight version: 3-pole rubber cable, ⌀7.0, 3x1.0mm². DALI version: 5-pole rubber cable, ⌀9.0, 5x0.75/ 5x1.0mm². 1-10V version: ⌀9.0, 3x1.0mm². DALI version: 5-pole rubber cable, ⌀9.0, 5x0.75/ 5x1.0mm². 1-10V version: ⌀9.0, 3x1.0mm². DALI version: 5-pole rubber cable, ⌀9.0, 5x0.75/ 5x1.0mm² |
| Optic Type | Lens |
| Working temperature range | -40°C to +50°C |
| Working humidity range | 10%-90% RH |
| Mounting Type | post_top |
| Pole Diameter Compatibility | 60mm |
| Motion Sensor Included | Yes |
| Photocell Included | Yes |
| NEMA Socket | 7-pin NEMA (Zhaga) |
| Dark Sky Compliant | Yes |
| DLC Listed | DLC Premium v5.10 |
| Lifespan (hours) | 100,000 hours |
| Product dimensions (mm) | 514.03x225.02x105.65 |
|---|---|
| Net weight (kg) | 2.9 kg |
| Export carton dimensions (mm) | 565x285x145 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 3.49 kg |
| Fixture height (mm) | 105.65 |
| Fixture width (mm) | 225.02 |
| Fixture length (mm) | 514.03 |
Performance
21,000 lm
TOTAL OUTPUT
120 W
POWER DRAW
170
EFFICACY
