IP65
5 YR WARRANTY

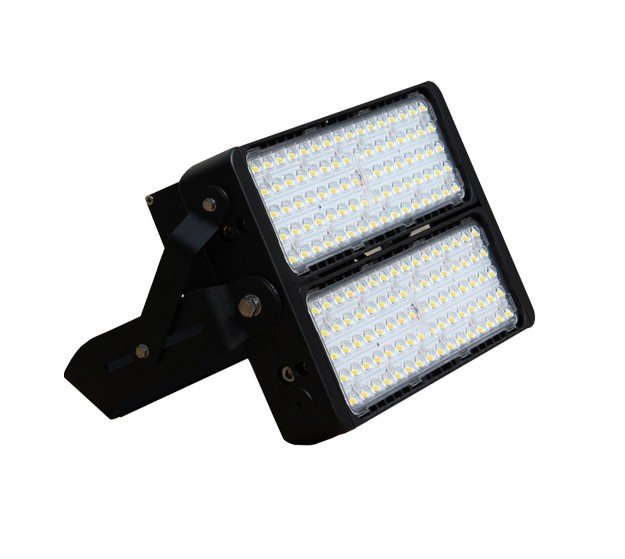

150 Watt natural white non-dimmable 40×100° modular LED flood light (IP65)
SKU JNFLM13-150S-4000-A6-ND
150W modular LED flood light, configuration 1x2 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Non-dimmable. IP65. Replaces 250 Watt metal halide/HID/HPS.
OUTPUT
19,500 lm
POWER
150 W
INGRESS
IP65
BEAM
40x100°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFLM13-150S-4000-A6-ND |
|---|---|
| Power Consumption | 150 W |
| Input Voltage | 100-277V |
| Beam angle (°) | 40x100° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >80 |
| LED type | Philips Lumileds (Luxeon TX) |
| Total Lumen output | 19500 |
| Kelvin (K) | 4000 |
| IK impact rating | IK08 |
| Dimming Capability | Dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Input Frequency | 50/60 Hz |
| Housing material | Die-cast Aluminum |
| Warranty period (Years) | 5 |
| System Power | 156 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 40x100° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket Mount |
| Fixture height (mm) | 113 mm |
| Fixture length (mm) | 326 mm |
| Fixture width (mm) | 128 mm |
| Product Weight | 6.2 kg |
| LED driver brand | Meanwell driver(s) |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 326x128x113mm |
|---|---|
| Net weight (kg) | 6.2 kg |
| Export carton dimensions (mm) | 400x360x230 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 8 kg |
| Fixture height (mm) | 113 |
| Fixture width (mm) | 128 |
| Fixture length (mm) | 326 |
Performance
19,500 lm
TOTAL OUTPUT
150 W
POWER DRAW
40x100°
BEAM
