IP65
5 YR WARRANTY

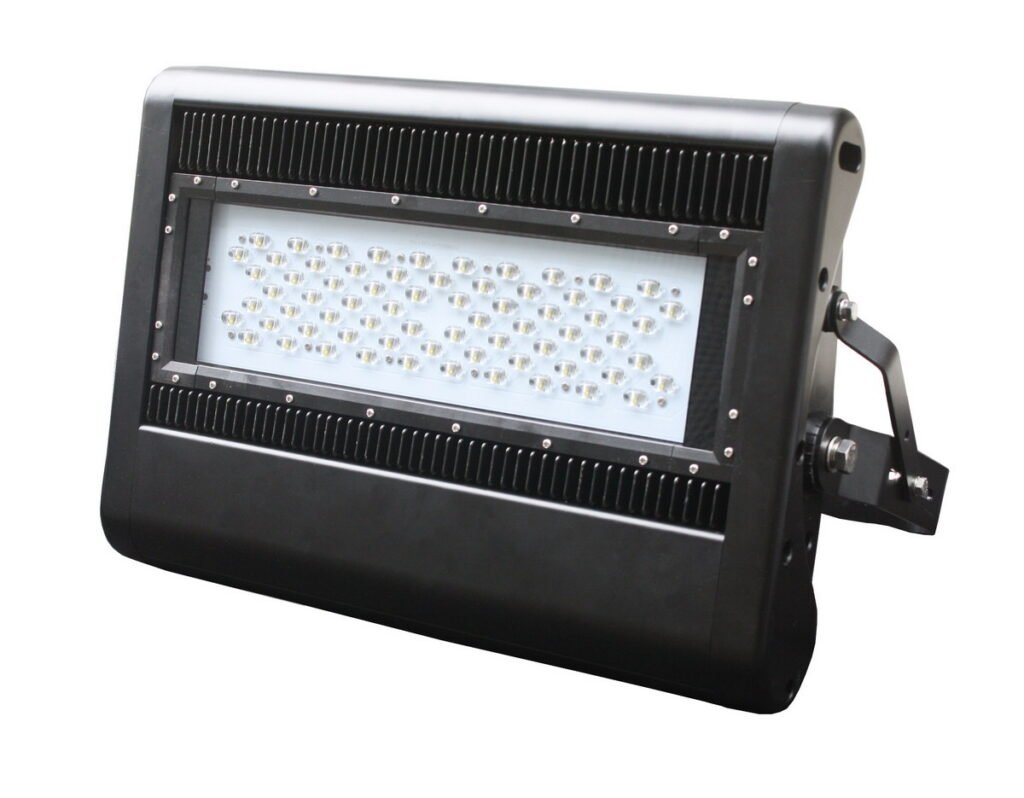

150 Watt warm white dimmable 15×15° single lens/ PCB LED flood light (IP65)
SKU JNFL13-150S-3500-A1-DIM
150 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 250 Watt metal halide/HID/HPS.
OUTPUT
23,100 lm
POWER
150 W
INGRESS
IP65
BEAM
15°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL13-150S-3500-A1-DIM |
|---|---|
| Power Consumption | 150 W |
| Input Voltage | 100-305 |
| Beam angle (°) | 15° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Total Lumen output | 23100 |
| Kelvin (K) | 3500 |
| IK impact rating | IK07 |
| Dimming Capability | Dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Warranty period (Years) | 5 |
| System Power | 170 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 15x15° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket |
| Fixture height (mm) | 366 mm |
| Fixture length (mm) | 387 mm |
| Fixture width (mm) | 91 mm |
| Product Weight | 7 kg |
| LED driver brand | Meanwell HLG-150H |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Net weight (kg) | 7 kg |
|---|---|
| Export carton dimensions (mm, 2pcs) | 560x460x380 |
| Products per carton | 2 |
| Export carton gross weight (kg) | 10 kg |
| Fixture height (mm) | 366 |
| Fixture width (mm) | 91 |
| Fixture length (mm) | 387 |
Performance
23,100 lm
TOTAL OUTPUT
150 W
POWER DRAW
15°
BEAM
