IP65
5 YR WARRANTY

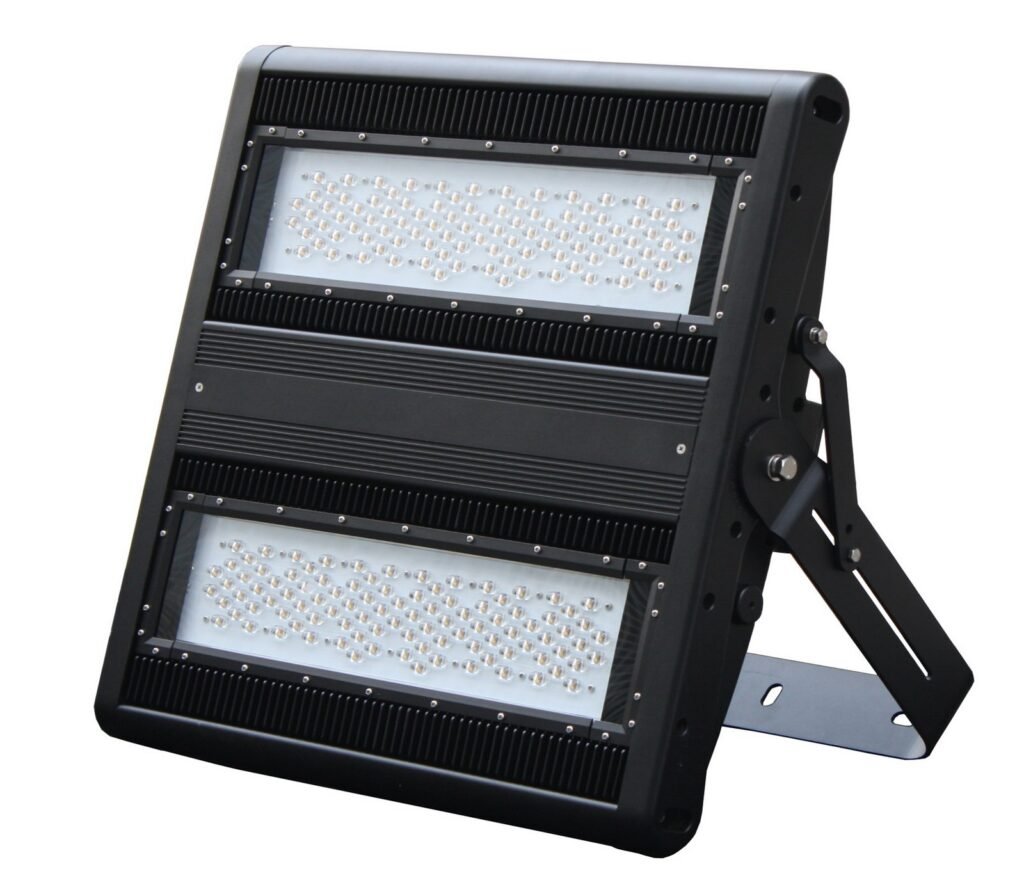

1800 Watt warm white non-dimmable 40×40° dual lens/ PCB LED flood light (IP65)
SKU JNFL25-1800S-3500-A3-ND
1450 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 2500 Watt metal halide/HID/HPS.
OUTPUT
211,000 lm
POWER
1700 W
INGRESS
IP65
BEAM
40°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL25-1800S-3500-A3-ND |
|---|---|
| Power Consumption | 1700 W |
| Input Voltage | 100-305 |
| Beam angle (°) | 40° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Total Lumen output | 211000 |
| Kelvin (K) | 3500 |
| IK impact rating | IK07 |
| Dimming Capability | Non-dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Warranty period (Years) | 5 |
| System Power | 1800 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 40x40° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket |
| Fixture height (mm) | 161 mm |
| Fixture length (mm) | 788 mm |
| Fixture width (mm) | 665 mm |
| Product Weight | 42 kg |
| LED driver brand | Meanwell HLG-1000H |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Net weight (kg) | 42 kg |
|---|---|
| Export carton dimensions (mm) | 950x880x270 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 41 kg |
| Fixture height (mm) | 161 |
| Fixture width (mm) | 665 |
| Fixture length (mm) | 788 |
Performance
211,000 lm
TOTAL OUTPUT
1700 W
POWER DRAW
40°
BEAM
