IP20

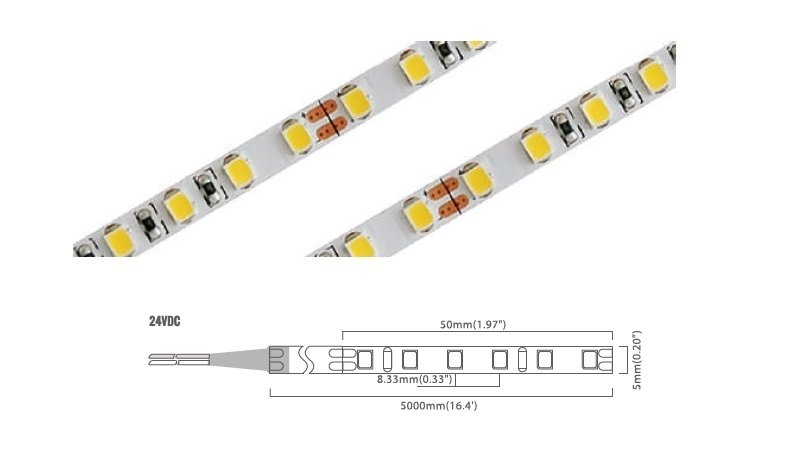

2835 Series 120 LED/m | 2835 SMD (24V narrow) 120LED/m 24V 22W/m 6000K
SKU JN120205-2835-60
2835 Series 120 LED/m | 2835 SMD (24V narrow): 120 2835 SMD LEDs/m, 22W/m, 24V, 6000K. Available in IP20.
OUTPUT
1970 lm/m
POWER
22W/m
INGRESS
IP20
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN120205-2835-60 |
|---|---|
| Power Consumption | 22W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 6000K |
| Color Rendering Index (CRI) | 80+ |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 2835 SMD |
| Form Factor | 5mm |
| LED Quantity Per Meter | 120 |
| Luminous Efficacy (lm/W) | 93 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 50mm |
| PCB Width (mm) | 5mm |
| Lumen Output (lm/m) | 1970 lm/m |
| Input Current Per Meter | 0.92A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x5mm |
|---|
Performance
1970 lm/m
TOTAL OUTPUT
22W/m
POWER DRAW
93
EFFICACY
