IP20/IP65
315 Series 140 LED/m | 315 SMD 140LED/m 24V 9.6W/m 4000K IP20/IP65
SKU JN140210-315-40
315 Series 140 LED/m | 315 SMD: 140 315 SMD LEDs/m, 9.6W/m, 24V, 4000K. Available in IP20/IP65. 5mm width; narrow apps
OUTPUT
960 lm/m
POWER
9.6W/m
INGRESS
IP20/IP65
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN140210-315-40 |
|---|---|
| Power Consumption | 9.6W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 4000K |
| Color Rendering Index (CRI) | >90, >95 |
| IP Rating (Ingress Protection) | IP20/IP65 |
| LED type | 315 SMD |
| Form Factor | 10mm |
| LED Quantity Per Meter | 140 |
| Luminous Efficacy (lm/W) | 100 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 50mm |

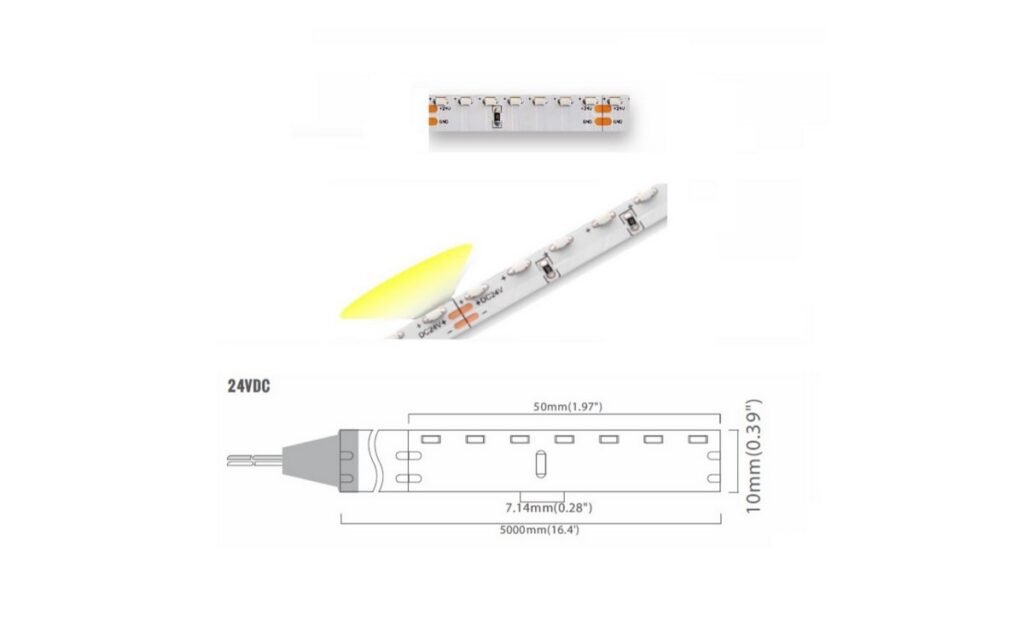

| PCB Width (mm) | 10mm |
| Lumen Output (lm/m) | 960 lm/m |
| Input Current Per Meter | 0.40A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10mm |
|---|
Performance
960 lm/m
TOTAL OUTPUT
9.6W/m
POWER DRAW
100
EFFICACY
