IP65 5 YR WARRANTY

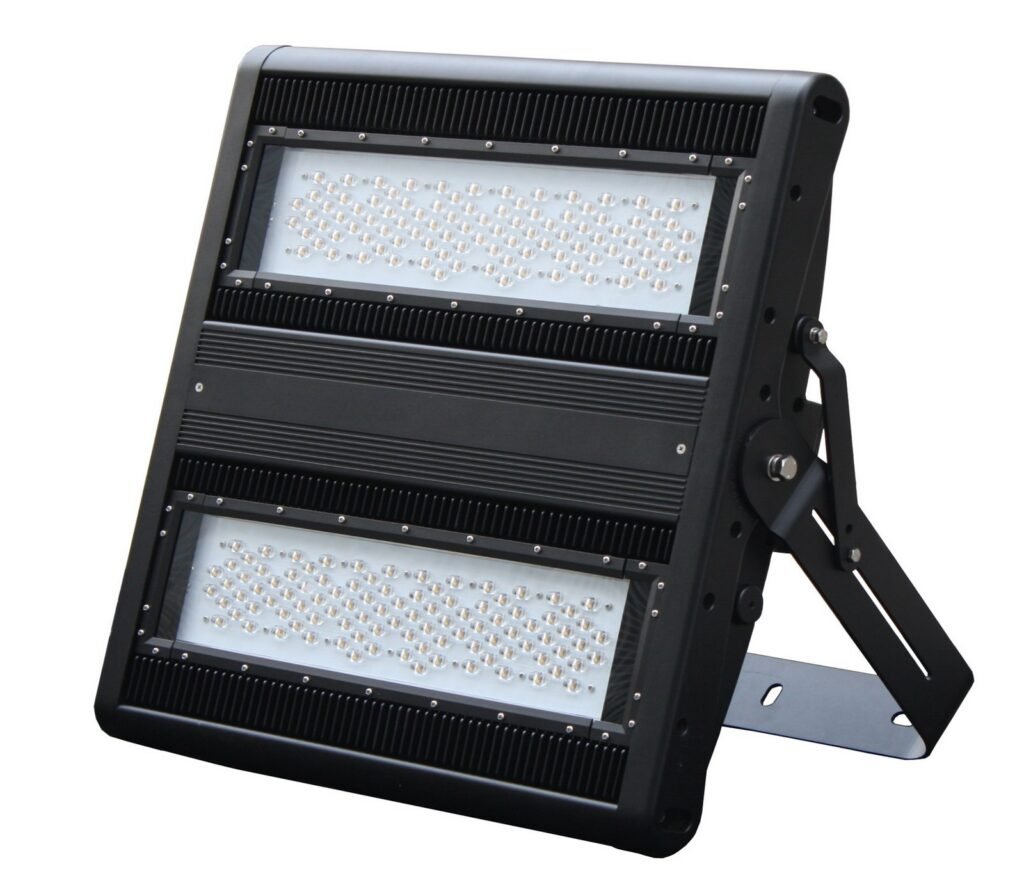

500 Watt natural white dimmable 15×15° dual lens/ PCB LED flood light (IP65)

SKU JNFL19-500S-4000-A1-DIM

500 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 1000 Watt metal halide/HID/HPS.

OUTPUT

73,000 lm

POWER

500 W

INGRESS

IP65

BEAM

15°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Technical specification

Product SKU	JNFL19-500S-4000-A1-DIM
Power Consumption	500 W
Input Voltage	100-305
Beam angle (°)	15°
IP Rating (Ingress Protection)	IP65
Color Rendering Index (CRI)	>70
LED type	Philips Lumileds
Total Lumen output	73000
Kelvin (K)	4000
IK impact rating	IK07
Dimming Capability	Dimmable
Housing colour	Black
Power Factor (PF)	>0.95
Warranty period (Years)	5
System Power	550 W
Number of LED Modules	1 modules
Beam Angle Square	15x15°
Environmental Temperature Range	-20°C ~ 45°C
Mounting Type	Adjustable Bracket
Fixture height (mm)	117 mm
Fixture length (mm)	593 mm
Fixture width (mm)	621 mm
Product Weight	21 kg
LED driver brand	Meanwell HLG-480H
Working temperature range	-20°C ~ 45°C
Working humidity range	10%-90% RH
Lifespan (hours)	50,000 hours

Net weight (kg)	21 kg
Export carton dimensions (mm)	730x230x930
Products per carton	1
Export carton gross weight (kg)	24 kg
Fixture height (mm)	117
Fixture width (mm)	621
Fixture length (mm)	593

73,000 lm

TOTAL OUTPUT

500 W

POWER DRAW

15°

BEAM
