IP20

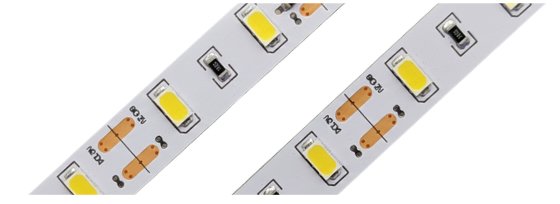

5730 Series 36 LED/m | 5730 SMD (24V) 36LED/m 24V 9W/m 3000K
SKU JN36210-30
5730 Series 36 LED/m | 5730 SMD (24V): 36 5730 SMD LEDs/m, 9W/m, 24V, 3000K. Available in IP20.
OUTPUT
605 lm/m
POWER
9W/m
INGRESS
IP20
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN36210-30 |
|---|---|
| Power Consumption | 9W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 3000K |
| Color Rendering Index (CRI) | 80+ |
| IP Rating (Ingress Protection) | IP20 |
| LED type | 5730 SMD |
| Form Factor | 10mm |
| LED Quantity Per Meter | 36 |
| Luminous Efficacy (lm/W) | 91 lm/W |
| Beam angle (°) | 120° |
| Cut Point (mm) | 166.67mm |
| PCB Width (mm) | 10mm |
| Lumen Output (lm/m) | 605 lm/m |
| Input Current Per Meter | 0.38A/m |
| Max Run Length (m) | 5 |
| PCB Copper Weight (oz) | 2 |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x10mm |
|---|
Performance
605 lm/m
TOTAL OUTPUT
9W/m
POWER DRAW
91
EFFICACY
