IP65 5 YR WARRANTY

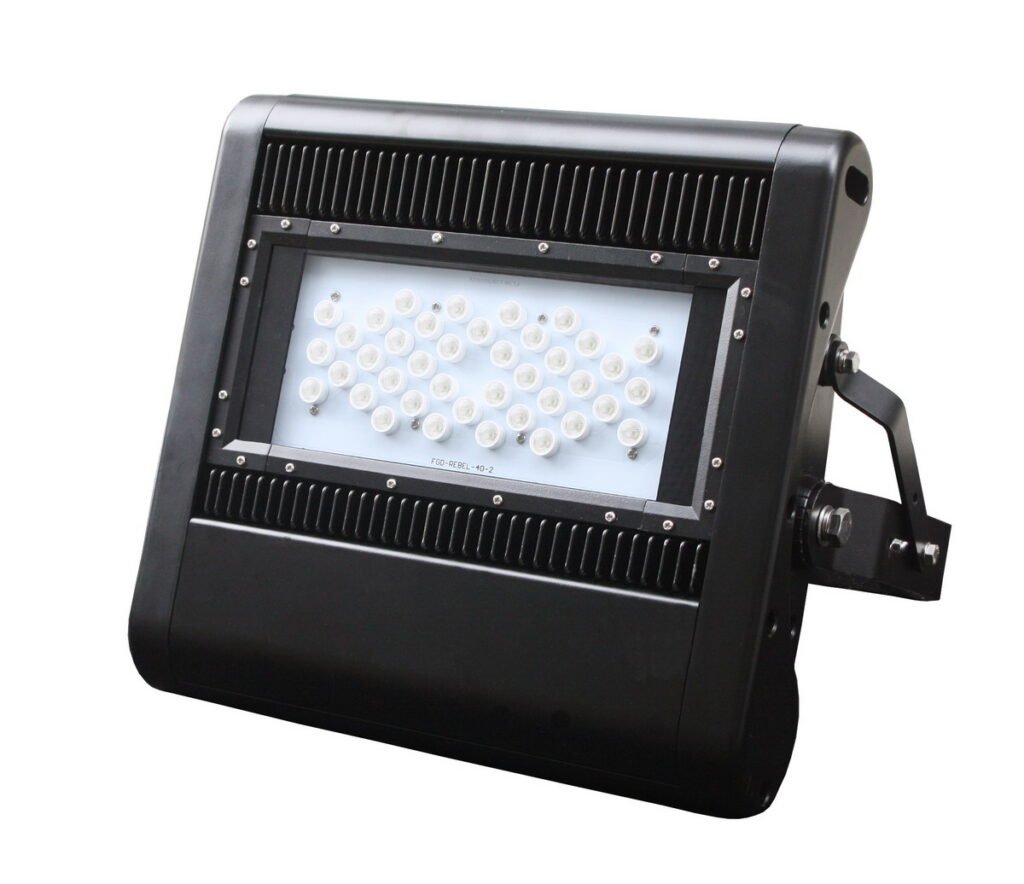

80 Watt warm white dimmable 30×30° single lens/ PCB LED flood light (IP65)

SKU JNFL11-080S-3000-A2-DIM

80 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Dimmable. IP65. Replaces 150-175 Watt metal halide/HID/HPS.

OUTPUT

12,000 lm

POWER

80 W

INGRESS

IP65

BEAM

30°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Technical specification

Product SKU	JNFL11-080S-3000-A2-DIM
Power Consumption	80 W
Input Voltage	100-305
Beam angle (°)	30°
IP Rating (Ingress Protection)	IP65
Color Rendering Index (CRI)	>70
LED type	Philips Lumileds
Total Lumen output	12000
Kelvin (K)	3000
IK impact rating	IK07
Dimming Capability	Dimmable
Housing colour	Black
Power Factor (PF)	>0.95
Warranty period (Years)	5
System Power	90 W
Number of LED Modules	1 modules
Beam Angle Square	30x30°
Environmental Temperature Range	-20°C ~ 45°C
Mounting Type	Adjustable Bracket
Fixture height (mm)	366 mm
Fixture length (mm)	387 mm
Fixture width (mm)	91 mm
Product Weight	5 kg
LED driver brand	Meanwell HLG-60H
Working temperature range	-20°C ~ 45°C
Working humidity range	10%-90% RH
Lifespan (hours)	50,000 hours

Net weight (kg)	5 kg
Export carton dimensions (mm, 2pcs)	460x450x380
Products per carton	2
Export carton gross weight (kg)	8 kg
Fixture height (mm)	366
Fixture width (mm)	91
Fixture length (mm)	387

12,000 lm

TOTAL OUTPUT

80 W

POWER DRAW

30°

BEAM
