IP65
5 YR WARRANTY

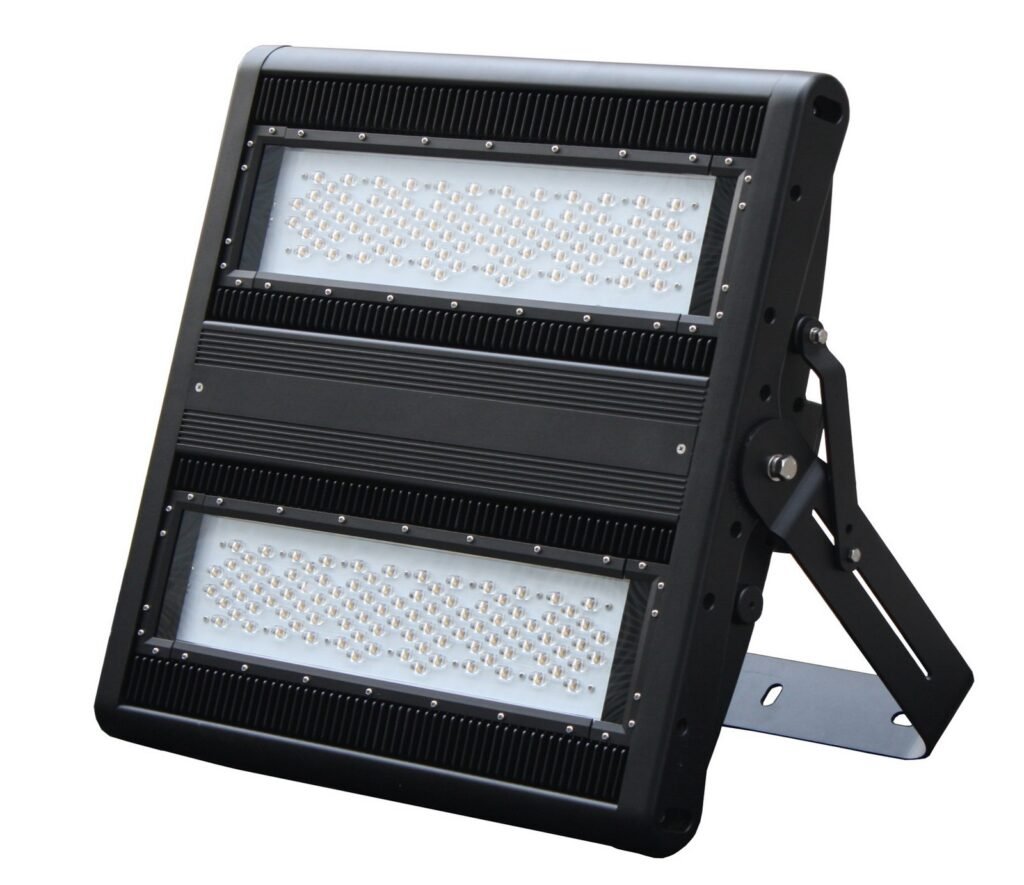

800 Watt warm white dimmable 60×135° dual lens/ PCB LED flood light (IP65)
SKU JNFL21-800S-3500-A5-DIM
800 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 1500 Watt metal halide/HID/HPS.
OUTPUT
123,000 lm
POWER
800 W
INGRESS
IP65
BEAM
60°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL21-800S-3500-A5-DIM |
|---|---|
| Power Consumption | 800 W |
| Input Voltage | 100-305 |
| Beam angle (°) | 60° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Total Lumen output | 123000 |
| Kelvin (K) | 3500 |
| IK impact rating | IK07 |
| Dimming Capability | Dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Warranty period (Years) | 5 |
| System Power | 880 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 60x135° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket |
| Fixture height (mm) | 117 mm |
| Fixture length (mm) | 833 mm |
| Fixture width (mm) | 621 mm |
| Product Weight | 30 kg |
| LED driver brand | Meanwell HLG-480H |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Net weight (kg) | 30 kg |
|---|---|
| Export carton dimensions (mm) | 950x880x270 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 33 kg |
| Fixture height (mm) | 117 |
| Fixture width (mm) | 621 |
| Fixture length (mm) | 833 |
Performance
123,000 lm
TOTAL OUTPUT
800 W
POWER DRAW
60°
BEAM
