IP67
5 YR WARRANTY

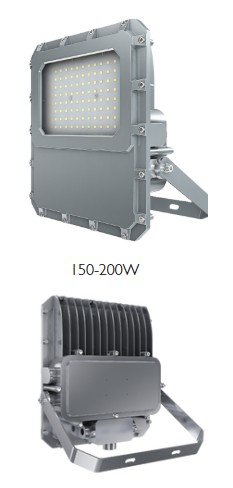

ATEX explosion proof LED lights 150 Watt, 19500lm, 40°/ 60°/ 90°/ 120°, IP67, ,2200K-7000K
SKU JNFL-ATEX-FSeries2 (150W)
Explosion-proof LED lighting solution certified for hazardous locations
OUTPUT
19,500 lm
POWER
150 W
INGRESS
IP67
BEAM
40°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL-ATEX-FSeries2 (150W) |
|---|---|
| Power Consumption | 150 W |
| Input Voltage | AC120-277V, 50/60Hz, DC36V |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2200K-7000K |
| LED type | Philips LUMILEDs 3030 or 5050 |
| Total Lumen output | 19500 |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK07 (without wire guard) |
| Housing colour | Grey |
| Housing material | Copper free aluminium, tempered glass |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP67 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 40°, 60°, 90°, 120° |
| Dimming Capability | 0-10V (optional) |
| ATEX standard | Flame-proof type: Gas: II 2 G Ex db IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°...120°C Db IP66; Flame-proof and increased safe type: Gas: II 2 G Ex db eb IIB T6...T4 Gb; Dust: II 2 D Ex tb IIIC T80°C...120°C Db IP66 |
| IECEx standard | Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db |
| UL standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap standard | Esquema 5 RETILAP |
| Fixture shape | Rectangular |
| Fixture height (mm) | 103 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 380 mm |
| Net weight (kg) | 12.5 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK09 (with wire guard) |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 103×270×380mm |
|---|---|
| Net weight (kg) | 12.5 kg |
| Export carton dimensions (mm) | 386x330x220 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 14.5 kg |
| Fixture height (mm) | 103 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 380 |
Performance
19,500 lm
TOTAL OUTPUT
150 W
POWER DRAW
140
EFFICACY
