IP67
5 YR WARRANTY

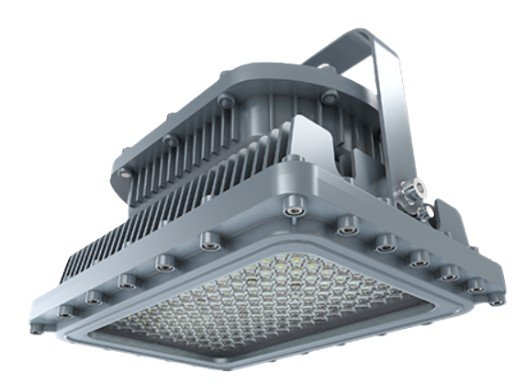

ATEX explosion proof LED lights 200 Watt, 27500lm, 40/ 60/ 90/ 120°, IP67, ,2200K-7000K
SKU JNFL-ATEX-A1-DSeries2 (200W)
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, pole pendant (model D2 only), diagonal pole mounting (model D2 only), wall mounting with junction box (90°)
OUTPUT
27,500 lm
POWER
200 W
INGRESS
IP67
BEAM
40°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL-ATEX-A1-DSeries2 (200W) |
|---|---|
| Power Consumption | 200 W |
| Input Voltage | 100-277VAC; 200-480VVAC; 12-48VDC |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2200K-7000K |
| LED type | SMD |
| Total Lumen output | 27500 |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK08 (Glass cover) |
| Housing colour | Grey |
| Housing material | Copper free aluminium, tempered glass |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP67 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 40°, 60°, 90°, 120° |
| Dimming Capability | 0-10V (optional) |
| ATEX standard | II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db |
| IECEx standard | Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db |
| UL standard | Class I, Division 2, Groups C, D/Class I, Division 2, Groups A, B, C, D/Class II, Division 1, Groups E, F, G/Class II, Division 2, Groups F, G/Class III |
| Retilap standard | Esquema 5 RETILAP |
| Other standards | UL1598, UL1598A, UL924, ETL, DLC, ABS, CSA, CB |
| Fixture shape | Round |
| Fixture height (mm) | 129 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 400 mm |
| Net weight (kg) | 7 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK10 (with Wire Guard) |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 129×270×400mm |
|---|---|
| Net weight (kg) | 7 kg |
| Export carton dimensions (mm) | 400x385x335 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 9.5 kg |
| Fixture height (mm) | 129 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 400 |
Performance
27,500 lm
TOTAL OUTPUT
200 W
POWER DRAW
140
EFFICACY
