IP67
5 YR WARRANTY

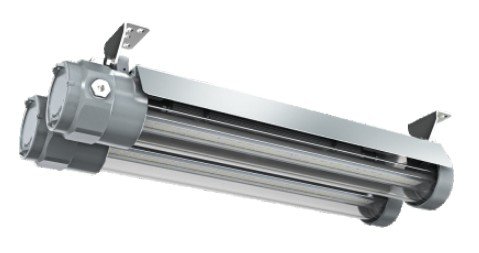

ATEX explosion proof LED lights 2×20 Watt, 7800lm, 120°, IP67, ,3000K – 6500K
SKU JN-ATEX-LinearESeries2 (2x20W)
Available mounting methods: stanchion mounting, pendant mounting
OUTPUT
7,800 lm
POWER
20 W
INGRESS
IP67
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-ATEX-LinearESeries2 (2x20W) |
|---|---|
| Power Consumption | 20 W |
| Input Voltage | AC100-277V, 50-60Hz; DC12-48V |
| Input Frequency | 50/ 60Hz |
| Kelvin | 3000K - 6500K |
| LED type | Philips Lumileds |
| Total Lumen output | 7800 |
| Luminous Efficacy (lm/W) | 130 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK10 (enclosures) |
| Housing colour | Grey |
| Housing material | ADC12 Aluminium/SUS304 |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP67 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 120° |
| Dimming Capability | Non-dimmable |
| ATEX standard | II 2GD Ex db eb mb IIC T6/T5 Gb, II 2GD Ex tb IIIC T80°C/T95°C Db, II 3GD Ex db ec IIC T6/T5/T4 Gc, II 3GD Ex tc IIIC T80°/T95°C/T105°C Dc |
| IECEx standard | Ex eb db mb IIC T6/T5 Gb, Ex tb IIIC T80°C/T95°C Db, Ex db ec IIC T6/T5/T4 Gc, Ex tc IIIC T80°/T95°C/T105°C Dc |
| UL standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap standard | Esquema 5 RETILAP |
| Other standards | EN 60079-0, EN 60079-1, EN 60079-7, EN60079-18, EN60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18, IEC 60079-31 |
| Fixture shape | Rectangular |
| Fixture height (mm) | 193 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 1365 mm |
| Net weight (kg) | 20 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK08 (glass) |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 193×270×1365mm |
|---|---|
| Net weight (kg) | 20 kg |
| Export carton dimensions (mm) | 1567x467x430 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 21.3 kg |
| Fixture height (mm) | 193 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 1365 |
Performance
7,800 lm
TOTAL OUTPUT
20 W
POWER DRAW
130
EFFICACY
