IP67
5 YR WARRANTY

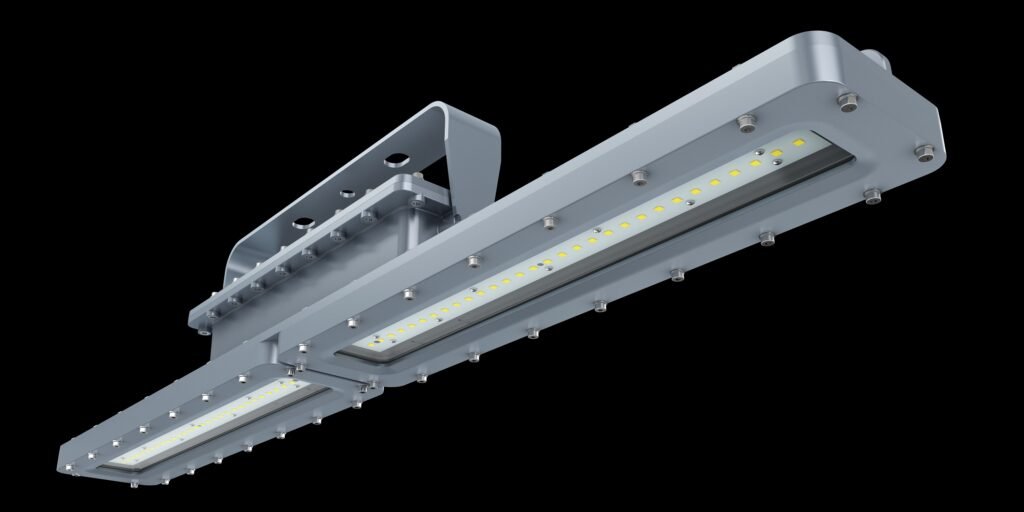

ATEX explosion proof LED lights 40 Watt, 5600lm, 120°, IP67, ,2200K-6500K
SKU JN-ATEX-LinearCSeries2 (40W)
Available mounting methods: ceiling mounting, wall mounting, pole bracket mounting, pendant mounting, chain mounting
OUTPUT
5,600 lm
POWER
40 W
INGRESS
IP67
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-ATEX-LinearCSeries2 (40W) |
|---|---|
| Power Consumption | 40 W |
| Input Voltage | AC100-277V; 200-480VAC; 12-36VDC |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2200K-6500K |
| LED type | Philips Lumileds |
| Total Lumen output | 5600 |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK08 (Glass cover) |
| Housing colour | Grey |
| Housing material | Copper free aluminium, tempered glass |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP67 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 120° |
| Dimming Capability | 0-10V (optional) |
| ATEX standard | II2 G Ex db IIB T4 Gb, II2 D Ex tb IIIC, T63.5°C Db IP65 |
| IECEx standard | Ex db IIB T4 Gb, Ex tb IIIC, T63.5°C Db IP65 |
| UL standard | Class I, Division 1, Groups C, D; Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III |
| Retilap standard | Esquema 5 RETILAP |
| Other standards | CB (Ref. Certif. No.: DE 2-038462-M1); UL1598, UL1598A, UL924, ETL, ABS, DLC, 1000 Hours Salt Spray/ 5G Vibration |
| Fixture shape | Rectangular |
| Fixture height (mm) | 133 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 1184 mm |
| Net weight (kg) | 18.5 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK10 (wire guard) |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 133×270×1184mm |
|---|---|
| Net weight (kg) | 18.5 kg |
| Export carton dimensions (mm) | 1360x340x265 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 21.5 kg |
| Fixture height (mm) | 133 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 1184 |
Performance
5,600 lm
TOTAL OUTPUT
40 W
POWER DRAW
140
EFFICACY
