IP66
5 YR WARRANTY

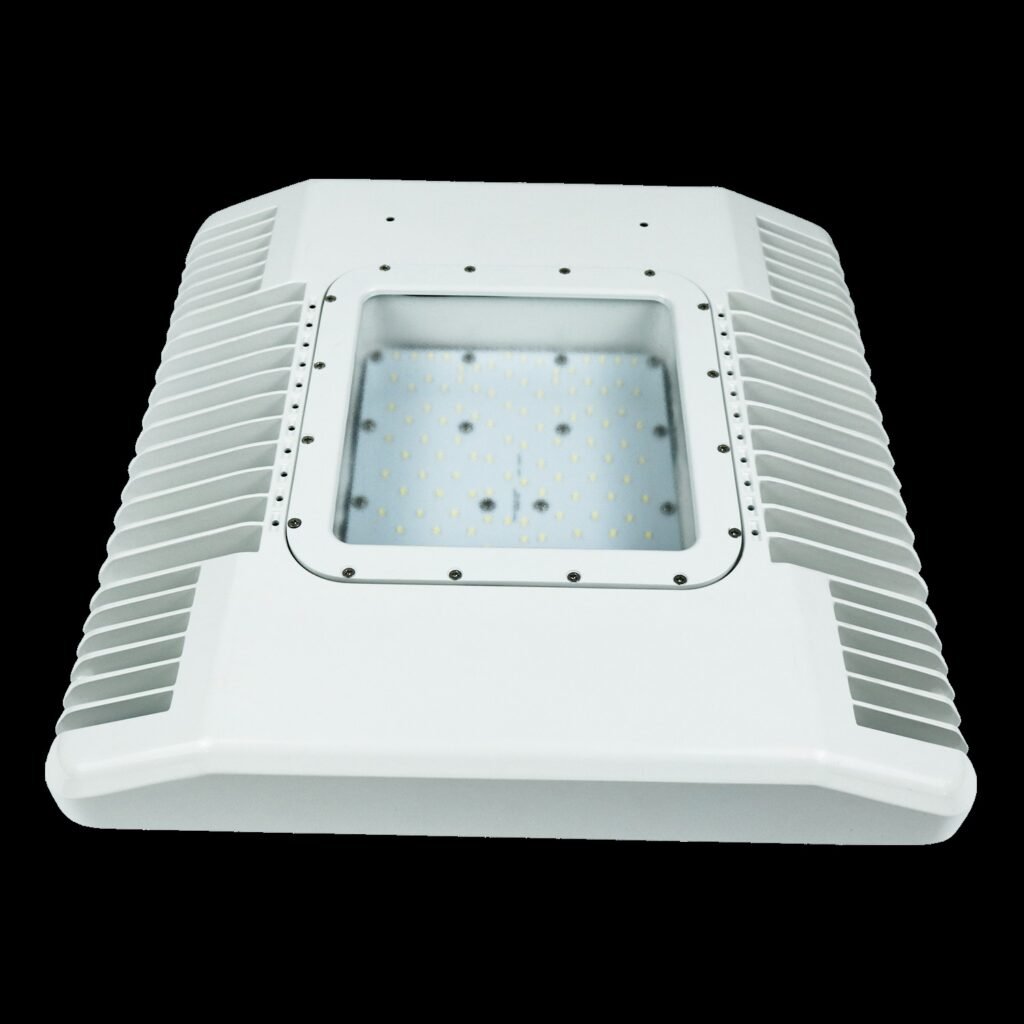

ATEX explosion proof LED lights 60 Watt, 8400lm, 120°, IP66, ,2200K-7000K
SKU JN-C-ATEX-CanopySeries (60W)
Available mounting methods: stanchion mounting, pendant mounting
OUTPUT
8,400 lm
POWER
60 W
INGRESS
IP66
BEAM
120°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-C-ATEX-CanopySeries (60W) |
|---|---|
| Power Consumption | 60 W |
| Input Voltage | 100-277VAC; 50/60Hz |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2200K-7000K |
| LED type | Philips Lumileds |
| Total Lumen output | 8400 |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK09 |
| Housing colour | Off-white |
| Housing material | Copper free aluminium, tempered glass |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP66 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 120° |
| Dimming Capability | Non-dimmable |
| ATEX standard | II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db |
| IECEx standard | Ex ec op is lIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db |
| UL standard | Class I, Division 2, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III |
| Retilap standard | Esquema 5 RETILAP |
| Fixture shape | Square |
| Fixture height (mm) | 94 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 385 mm |
| Net weight (kg) | 4 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK10 |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 94.6×270×385mm |
|---|---|
| Net weight (kg) | 4 kg |
| Export carton dimensions (mm) | 470x470x120 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 9 kg |
| Fixture height (mm) | 94 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 385 |
Performance
8,400 lm
TOTAL OUTPUT
60 W
POWER DRAW
140
EFFICACY
