IP66
5 YR WARRANTY

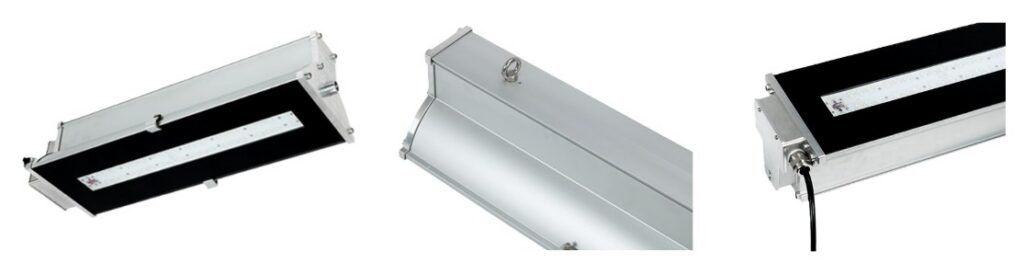

ATEX explosion proof LED lights 80 Watt, 10400lm, 40/ 60/ 90/ 120°, IP66, ,2700K-6500K
SKU JN-ATEX-LinearBSeries2 (80W)
Available mounting methods: bracket surface mounting, hook and rope mounting, pole mounting
OUTPUT
10,400 lm
POWER
80 W
INGRESS
IP66
BEAM
40°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-ATEX-LinearBSeries2 (80W) |
|---|---|
| Power Consumption | 80 W |
| Input Voltage | AC100-277V/DC12-48V |
| Input Frequency | 50/ 60Hz |
| Kelvin | 2700K-6500K |
| LED type | SMD |
| Total Lumen output | 10400 |
| Luminous Efficacy (lm/W) | 130 lm/W |
| Power Factor (PF) | >0.95 |
| IK impact rating | IK08 |
| Housing colour | Grey |
| Housing material | Die-casting Aluminium and A6063 |
| Warranty period (Years) | 5 |
| IP Rating (Ingress Protection) | IP66 |
| Color Rendering Index (CRI) | >70 |
| Beam angle (°) | 40°, 60°, 90°, 120° |
| Dimming Capability | Non-dimmable |
| ATEX standard | II2 G Ex db eb mb IIC T6/T5 Gb, II2 D Ex tb tp IIIC T80°C/T95°C Db IP66 |
| IECEx standard | Ex db eb mb IIC T6/T5 Gb, Ex tb tp IIIC T80°C/T95°C Db IP66 |
| UL standard | Class I, Division 2, Groups A, B, C, D Class I, Zone 1, AEx eb mb IIC T6...T4 Gb Class II, Division 1, Groups E, F, G |
| Retilap standard | Esquema 5 RETILAP |
| Other standards | EN 60079-0, EN 60079-31, EN 60079-1 |
| Fixture shape | Rectangular |
| Fixture height (mm) | 174 mm |
| Fixture width (mm) | 270 mm |
| Fixture length (mm) | 1266 mm |
| Net weight (kg) | 14 kg |
| Temperature Class | T6 |
| Gas group | IIC |
| Protection type | Ex eb mb |
| Zone classification | Zone 1 & 2 |
| IK rating (Impact Protection) | IK10 |
| Working temperature range | -20°C to +45°C |
| Working humidity range | 10-95% RH |
| Lifespan (hours) | 80,000 hours |
| Product dimensions (mm) | 174×270×1266mm |
|---|---|
| Net weight (kg) | 14 kg |
| Export carton dimensions (mm) | 1330x305x265 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 16 kg |
| Fixture height (mm) | 174 |
| Fixture width (mm) | 270 |
| Fixture length (mm) | 1266 |
Performance
10,400 lm
TOTAL OUTPUT
80 W
POWER DRAW
130
EFFICACY
