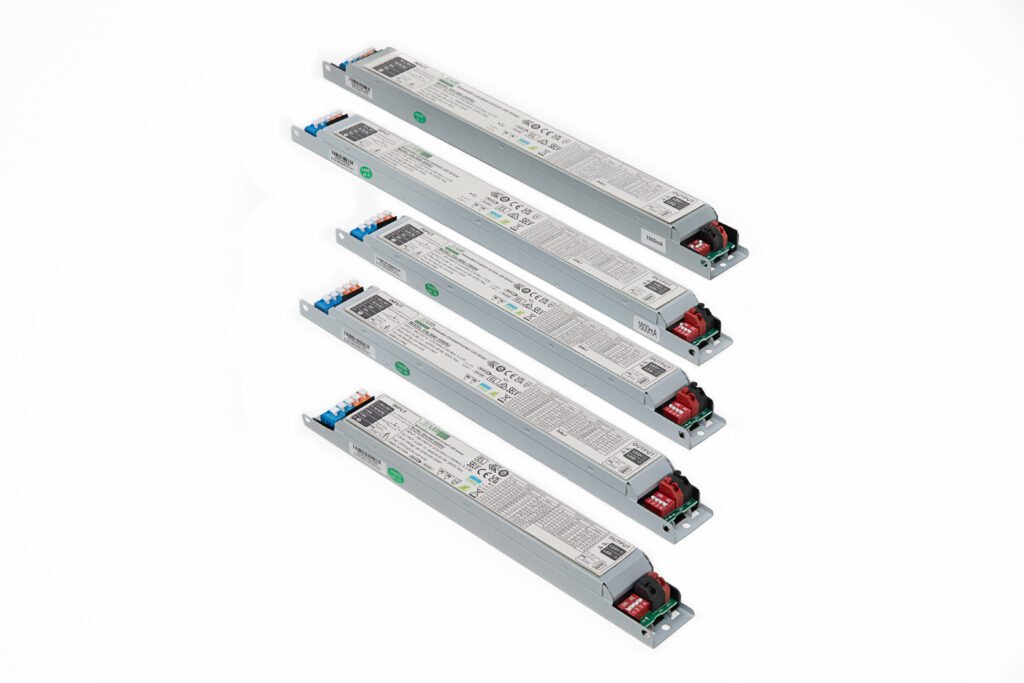

DALI-2 LED Driver 50W Constant Current 0.55-1.3A
SKU JN-DALI050-B1300Ad
49.4W DALI-2 constant current LED driver with pushDIM. DIP switch adjustable output 0.55-1.3A. 90% efficiency. CE ENEC UKCA certified.
POWER
49.4W
INGRESS
IP20
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-DALI050-B1300Ad |
|---|---|
| Power Consumption | 49.4W |
| Input Voltage | 200-240 VAC/DC |
| Dimming Capability | DALI-2 + pushDIM |
| IP Rating (Ingress Protection) | IP20 |
| Certifications | CE, ENEC, UKCA, RCM, CCC, EL, DALI-2 |
| Power Factor (PF) | >0.98 |
| Output Voltage Range | 6-38/40/42 VDC |
| Output Current Range | 0.55-1.3A |
| Regulation Method | Constant Current |
| Current Adjustment | DIP Switch (16 levels) |
| Dimming Range | 1-100% |
| Efficiency | 90% |
| Input THD | <7% |
| Input Current | <0.29A |
| Input Frequency | 0/50/60Hz |
| Standby Power | <0.5W |
| Output Current Accuracy | +/-2% |
| Output Current Ripple | +/-2% |
| No Load Output Voltage | 50 VDC |
| Max Case Temperature | 90 C |
| MTBF | 500,000h |
| Surge Protection | L-N: 2KV, L-FG/N-FG: 2KV |
| Emergency Support | Central + Self-contained |
| Inrush Current | 4.125A / 174us |
| Leakage Current | 0.65mA |
| Switching Cycles | >50,000 |
| Vibration Resistance | 10-500Hz, 5G |
| Acoustic Noise | <25dB |
| Environmental Protection | RoHS |
| Guarantee | 5 years |
| Working temperature range | -20 to 60 C |
| Lifespan (hours) | 100,000 hours |
| Product dimensions (mm) | L285xW30xH21mm |
|---|---|
| Net weight (kg) | 223g |
| Export carton dimensions (mm, 35pcs) | L355xW325xH170 |
| Products per carton | 35 |
