IP20

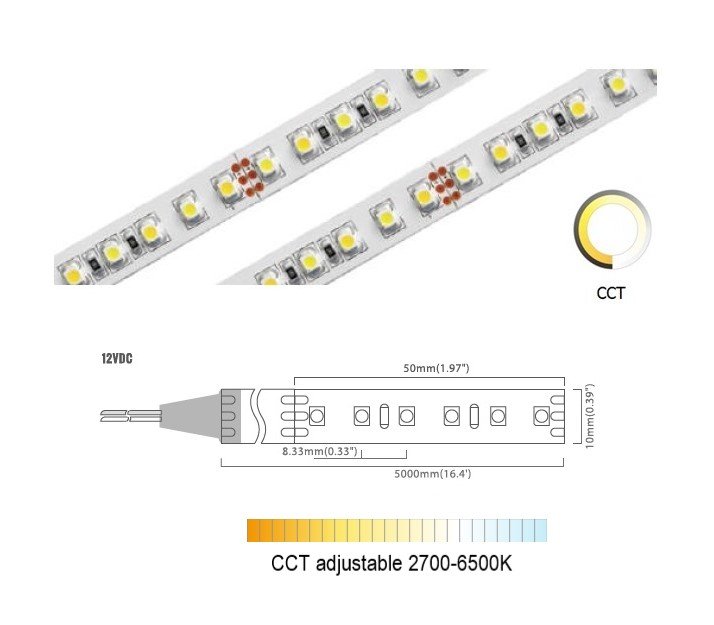

Dual White 120 LED/m | 2835 SMD (12V) 120LED/m 12V 22W/m Mix 4000K

SKU JN120110-2835-CCT-Mix

Dual White 120 LED/m | 2835 SMD (12V): 120 2835 SMD LEDs/m, 22W/m, 12V, Mix 4000K. Available in IP20. LM80 2835 with Epistar

OUTPUT

2024 lm/m

POWER

22W/m

INGRESS

IP20

BEAM

120°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Technical specification

Product SKU	JN120110-2835-CCT-Mix
Power Consumption	22W/m
Input Voltage	12V DC
Kelvin (K)	Mix 4000K
Color Rendering Index (CRI)	>90, >95
IP Rating (Ingress Protection)	IP20
LED type	2835 SMD
Form Factor	10mm
LED Quantity Per Meter	120
Luminous Efficacy (lm/W)	90/93/92 lm/W
Beam angle (°)	120°
Cut Point (mm)	50mm
PCB Width (mm)	10mm
Lumen Output (lm/m)	2024 lm/m
Input Current Per Meter	1.83A/m
Max Run Length (m)	5
PCB Copper Weight (oz)	2
Working temperature range	-20°C ~ 50°C
Lifespan (hours)	50,000 hours

Product dimensions (mm)	5000x10mm

2024 lm/m

TOTAL OUTPUT

22W/m

POWER DRAW

90/93/92

EFFICACY
