IP67

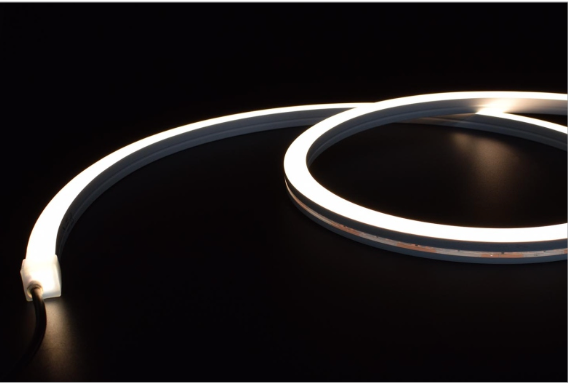

High Efficiency Neon Flex | Horizontal Bend 16 x 15mm 5W/m 24V 3000K
SKU JN-NF-5W-3000-16*15S-LuxPro-Hor
High Efficiency Neon Flex | Horizontal Bend: 16 x 15mm, Horizontal, Mono White (LuxPro), 5W/m, DC24V, 3000K, IP67.
OUTPUT
335 lm/m
POWER
5W/m
INGRESS
IP67
BEAM
3000K
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NF-5W-3000-16*15S-LuxPro-Hor |
|---|---|
| Power Consumption | 5W/m |
| Input Voltage | 24V DC |
| Kelvin (K) | 3000K |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP67 |
| Bending Type | Horizontal (min Ø200mm) |
| Dimension (W×H) | 16 x 15mm |
| Photometric Type | Mono White (LuxPro) |
| Colour Range | 2900-3100K |
| Cut Point (mm) | 50mm |
| Lumen Output (lm/m) | 335 lm/m |
| Input Current Per Meter | 0.21A/m |
| Max Run Length (m) | 5 |
| Circuit Type | CV |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x16 x 15mm |
|---|
Performance
335 lm/m
TOTAL OUTPUT
5W/m
POWER DRAW
3000K
BEAM
