IP67

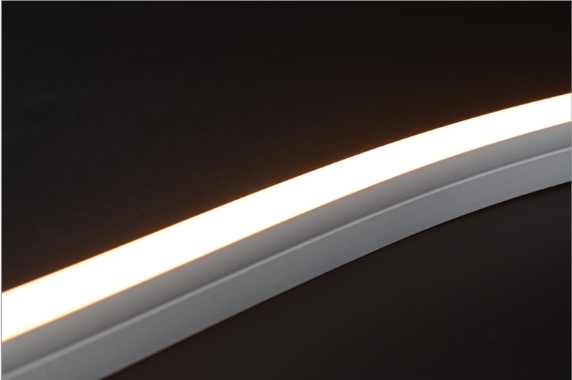

High Voltage Neon Flex 12 x 20mm 12W/m AC230V 3500K
SKU JN-NF-12W-3500-12*20S-AC230V-Hor
High Voltage Neon Flex: 12 x 20mm, Horizontal, Mono White, 12W/m, AC230V, 3500K, IP67.
OUTPUT
521 lm/m
POWER
12W/m
INGRESS
IP67
BEAM
3500K
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NF-12W-3500-12*20S-AC230V-Hor |
|---|---|
| Power Consumption | 12W/m |
| Input Voltage | 230V AC |
| Kelvin (K) | 3500K |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP67 |
| Bending Type | Horizontal (min Ø200mm) |
| Dimension (W×H) | 12 x 20mm |
| Photometric Type | Mono White |
| Colour Range | 3500±200K |
| Cut Point (mm) | 100mm |
| Lumen Output (lm/m) | 521 lm/m |
| Input Current Per Meter | 0.05A/m |
| Max Run Length (m) | 5 |
| Circuit Type | CV |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x12 x 20mm |
|---|
Performance
521 lm/m
TOTAL OUTPUT
12W/m
POWER DRAW
3500K
BEAM
