IP67

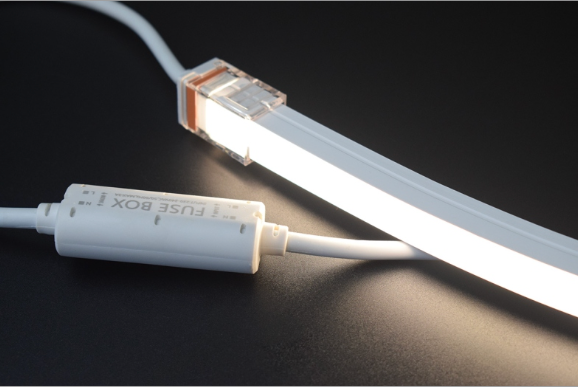

High Voltage Neon Flex 16 x 15mm 12W/m AC230V 6500K
SKU JN-NF-12W-6500-16*15T-AC230V-Ver
High Voltage Neon Flex: 16 x 15mm, Vertical, Mono White, 12W/m, AC230V, 6500K, IP67.
OUTPUT
689 lm/m
POWER
12W/m
INGRESS
IP67
BEAM
6500K
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JN-NF-12W-6500-16*15T-AC230V-Ver |
|---|---|
| Power Consumption | 12W/m |
| Input Voltage | 230V AC |
| Kelvin (K) | 6500K |
| Color Rendering Index (CRI) | >90 |
| IP Rating (Ingress Protection) | IP67 |
| Bending Type | Vertical (min Ø200mm) |
| Dimension (W×H) | 16 x 15mm |
| Photometric Type | Mono White |
| Colour Range | 6500±400K |
| Cut Point (mm) | 100mm |
| Lumen Output (lm/m) | 689 lm/m |
| Input Current Per Meter | 0.05A/m |
| Max Run Length (m) | 5 |
| Circuit Type | CV |
| Working temperature range | -20°C ~ 50°C |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 5000x16 x 15mm |
|---|
Performance
689 lm/m
TOTAL OUTPUT
12W/m
POWER DRAW
6500K
BEAM
