IP20

Lens Series 20 LED/m | 6060 SMD | S-type Bendable 20LED/m 5V 9W/m 2700K

SKU JN20108-S-27

Lens Series 20 LED/m | 6060 SMD | S-type Bendable: 20 6060 SMD LEDs/m, 9W/m, 5V, 2700K. Available in IP20. 160° beam; bendable for back-light & signs

OUTPUT

765 lm/m

POWER

9W/m

INGRESS

IP20

BEAM

120°

Project pricing on request

Volume, vessel class and coating affect price. Engineers reply within 48 h.

Technical specification

Product SKU	JN20108-S-27
Power Consumption	9W/m
Input Voltage	5V DC
Kelvin (K)	2700K
Color Rendering Index (CRI)	80+
IP Rating (Ingress Protection)	IP20
LED type	6060 SMD
Form Factor	8mm
LED Quantity Per Meter	20
Luminous Efficacy (lm/W)	85 lm/W
Beam angle (°)	120°
Cut Point (mm)	50mm
PCB Width (mm)	8mm
Lumen Output (lm/m)	765 lm/m
Input Current Per Meter	1.80A/m
Max Run Length (m)	5
PCB Copper Weight (oz)	2
Working temperature range	-20°C ~ 50°C
Lifespan (hours)	50,000 hours

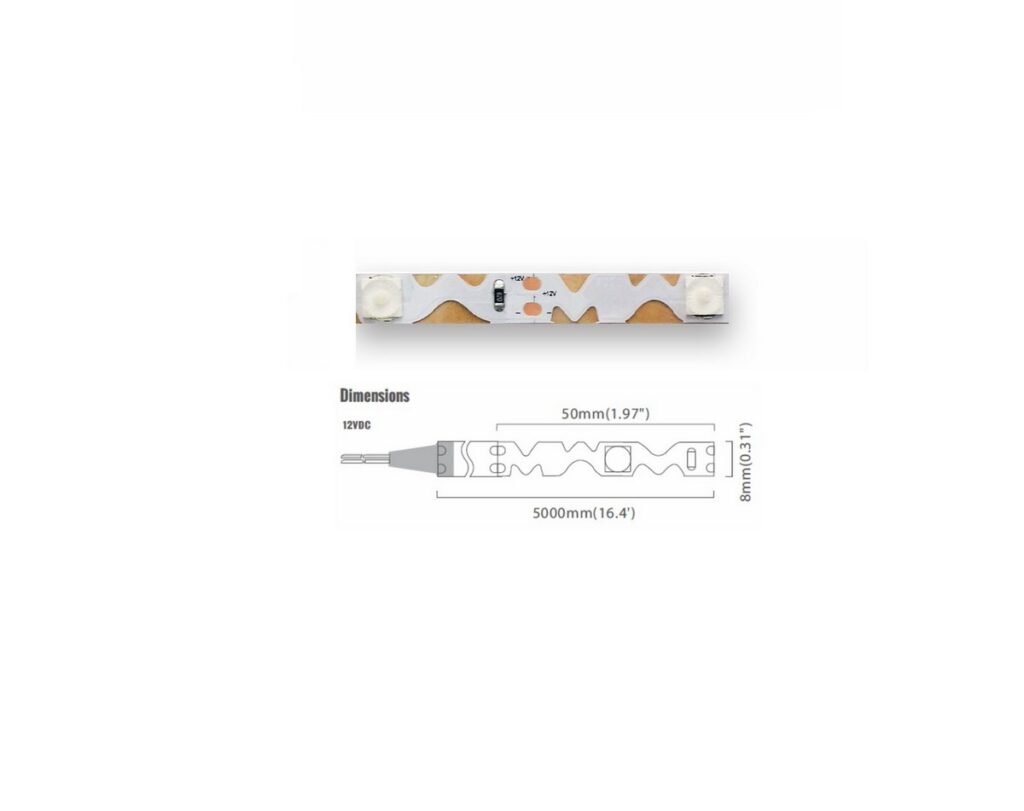

Product dimensions (mm)	5000x8mm

765 lm/m

TOTAL OUTPUT

9W/m

POWER DRAW

EFFICACY
