IP65
5 YR WARRANTY

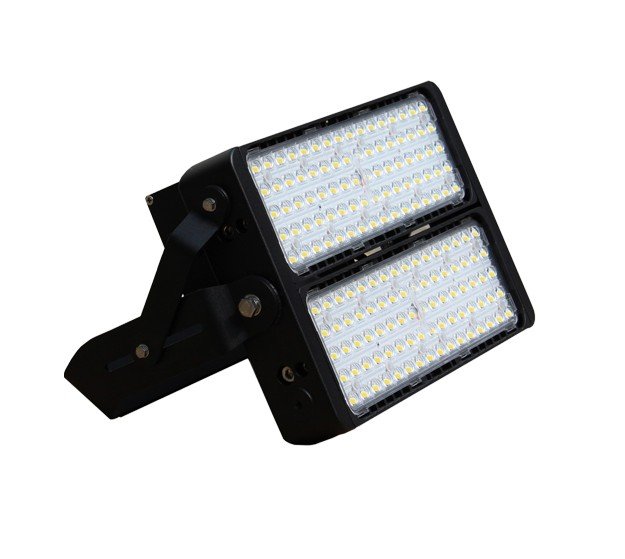

200 Watt cool white dimmable 30×30° modular LED flood light (IP65)
SKU JNFLM14-200S-5000-A2-DIM
200W modular LED flood light, configuration 1x3 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.
OUTPUT
26,000 lm
POWER
200 W
INGRESS
IP65
BEAM
30x30°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFLM14-200S-5000-A2-DIM |
|---|---|
| Power Consumption | 200 W |
| Input Voltage | 100-277V |
| Beam angle (°) | 30x30° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >80 |
| LED type | Philips Lumileds (Luxeon TX) |
| Total Lumen output | 26000 |
| Kelvin (K) | 6000 |
| IK impact rating | IK08 |
| Dimming Capability | Dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Input Frequency | 50/60 Hz |
| Housing material | Die-cast Aluminum |
| Warranty period (Years) | 5 |
| System Power | 206 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 30x30° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket Mount |
| Fixture height (mm) | 113 mm |
| Fixture length (mm) | 326 mm |
| Fixture width (mm) | 128 mm |
| Product Weight | 8.2 kg |
| LED driver brand | Meanwell driver(s) |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Product dimensions (mm) | 326x128x113mm |
|---|---|
| Net weight (kg) | 8.2 kg |
| Export carton dimensions (mm) | 400x360x230 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 8 kg |
| Fixture height (mm) | 113 |
| Fixture width (mm) | 128 |
| Fixture length (mm) | 326 |
Performance
26,000 lm
TOTAL OUTPUT
200 W
POWER DRAW
30x30°
BEAM
