IP65
5 YR WARRANTY

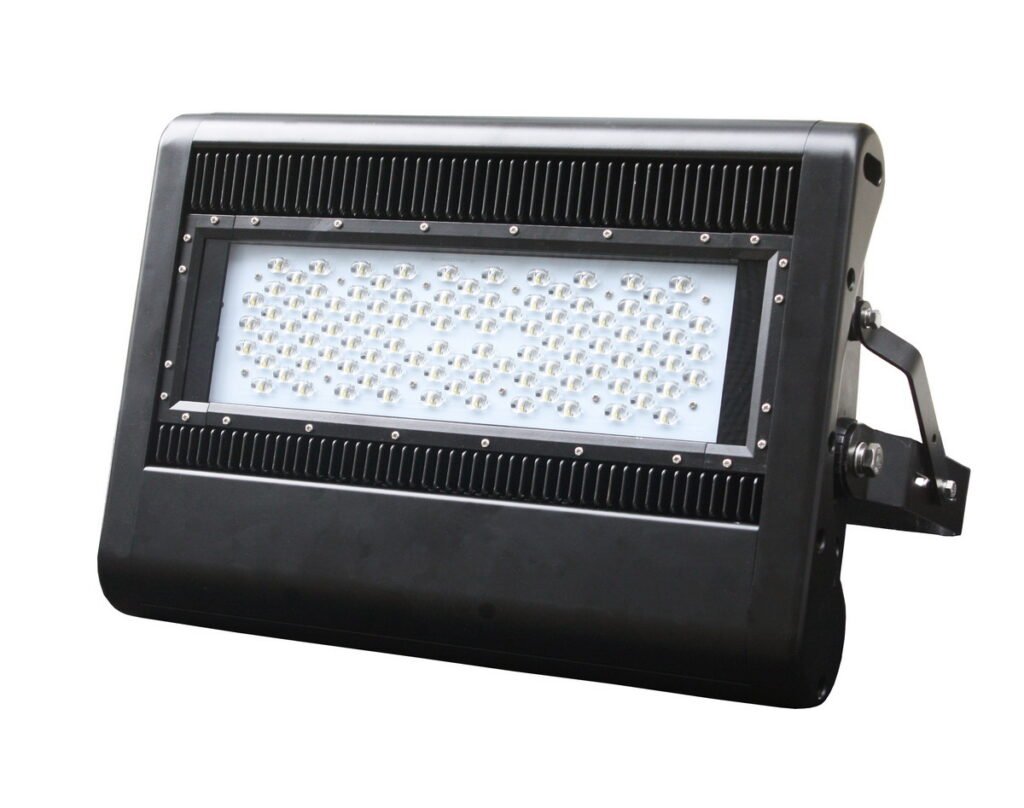

250 Watt natural white non-dimmable 40×40° single lens/ PCB LED flood light (IP65)
SKU JNFL15-250S-4500-A3-ND
250 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 400 Watt metal halide/HID/HPS.
OUTPUT
36,500 lm
POWER
250 W
INGRESS
IP65
BEAM
40°
Project pricing on request
Volume, vessel class and coating affect price. Engineers reply within 48 h.
Technical specification
| Product SKU | JNFL15-250S-4500-A3-ND |
|---|---|
| Power Consumption | 250 W |
| Input Voltage | 100-305 |
| Beam angle (°) | 40° |
| IP Rating (Ingress Protection) | IP65 |
| Color Rendering Index (CRI) | >70 |
| LED type | Philips Lumileds |
| Total Lumen output | 36500 |
| Kelvin (K) | 4500 |
| IK impact rating | IK07 |
| Dimming Capability | Non-dimmable |
| Housing colour | Black |
| Power Factor (PF) | >0.95 |
| Warranty period (Years) | 5 |
| System Power | 280 W |
| Number of LED Modules | 1 modules |
| Beam Angle Square | 40x40° |
| Environmental Temperature Range | -20°C ~ 45°C |
| Mounting Type | Adjustable Bracket |
| Fixture height (mm) | 366 mm |
| Fixture length (mm) | 507 mm |
| Fixture width (mm) | 91 mm |
| Product Weight | 8 kg |
| LED driver brand | Meanwell HLG-240H |
| Working temperature range | -20°C ~ 45°C |
| Working humidity range | 10%-90% RH |
| Lifespan (hours) | 50,000 hours |
| Net weight (kg) | 8 kg |
|---|---|
| Export carton dimensions (mm) | 620x440x180 |
| Products per carton | 1 |
| Export carton gross weight (kg) | 12 kg |
| Fixture height (mm) | 366 |
| Fixture width (mm) | 91 |
| Fixture length (mm) | 507 |
Performance
36,500 lm
TOTAL OUTPUT
250 W
POWER DRAW
40°
BEAM
